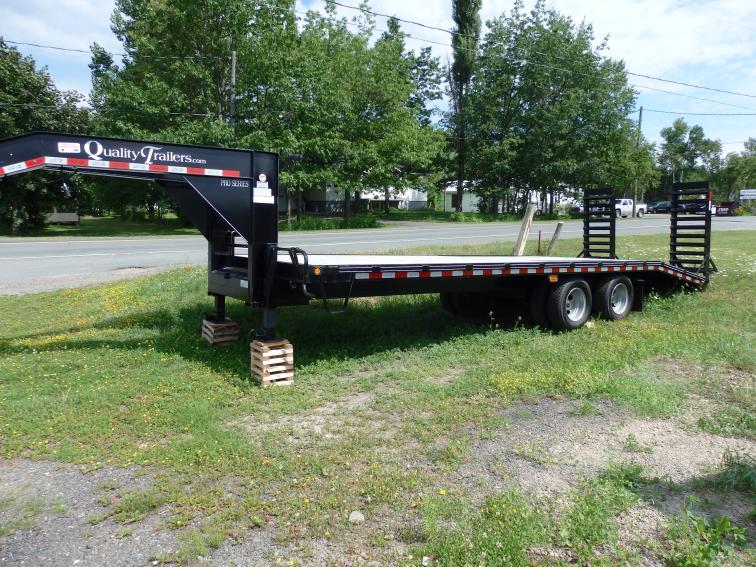

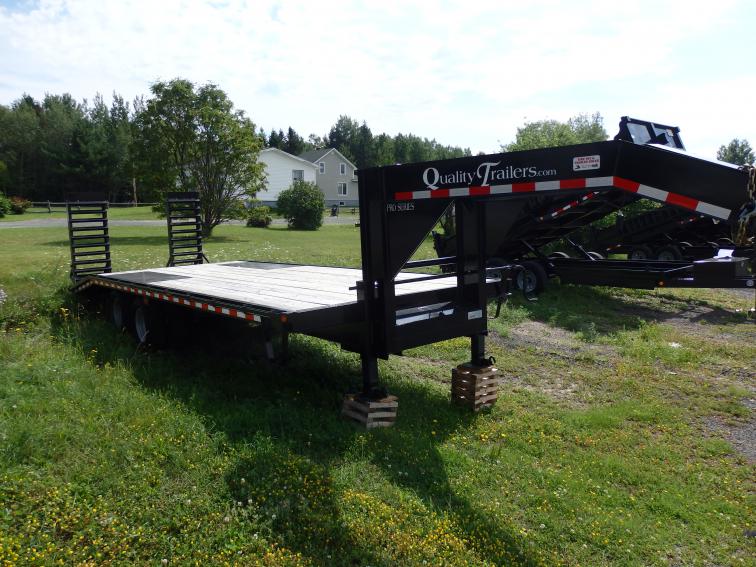

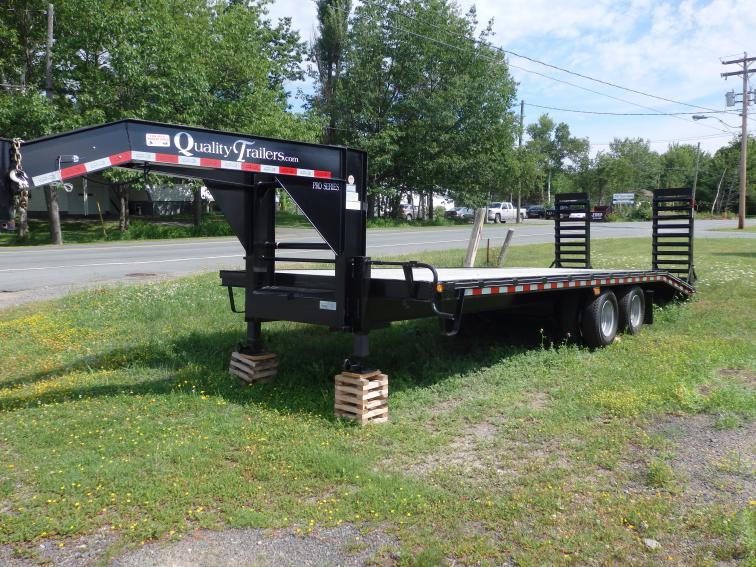

Standard I-beam frame with closer cross member spacing, radial tires, toolbox with lockable lid, LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness.

GVWR 12000 lb. – Capacity 10200 lb. with 1800 lb. Hitchload

• Treated wood deck
• 96″ wood deck 101.5″ to outside of rubrails
• 6000 lb. braking axles with 4 wheel brakes
• Double eye spring suspension

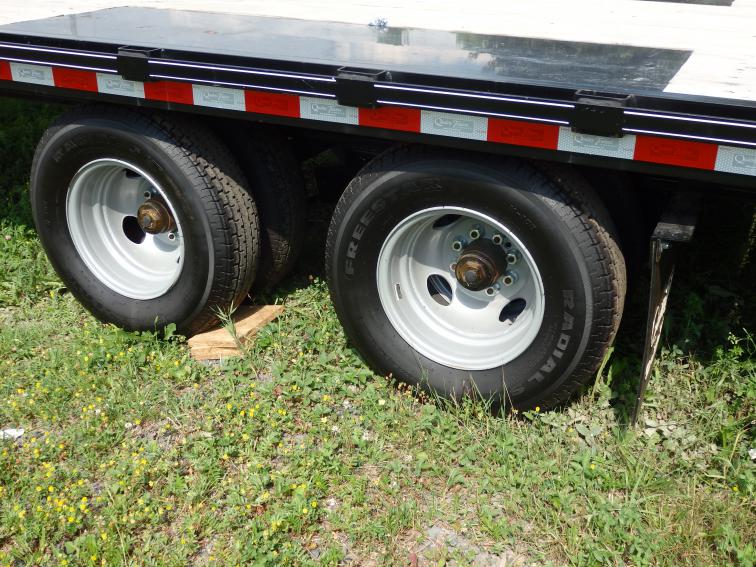

• 235/80 R16 load range E 10 ply rating RADIAL tires
• 8” I-beam frame (W8x10)
• 6″ flat bar side rails
• 3″ channel cross members – 16″ spacing

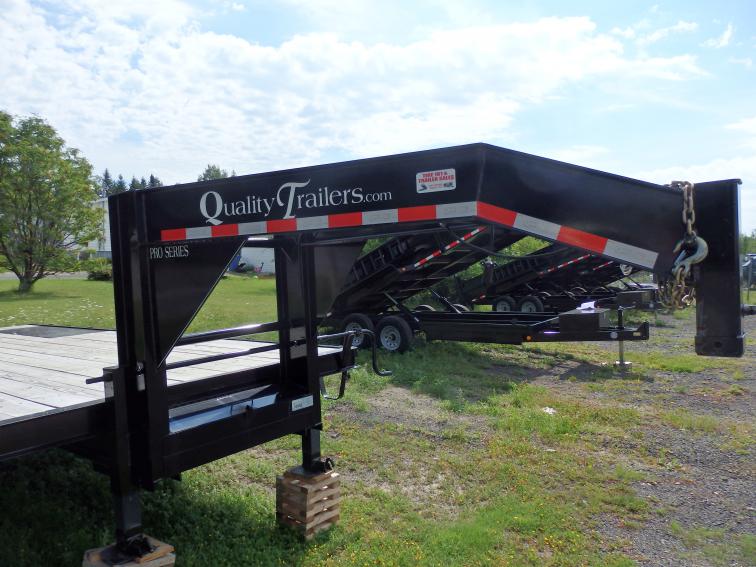

• 10″ I-beam uprights, 8″ I-beam neck (toolbox and lockable lid)
• Toolbox with lockable lid built into tongue

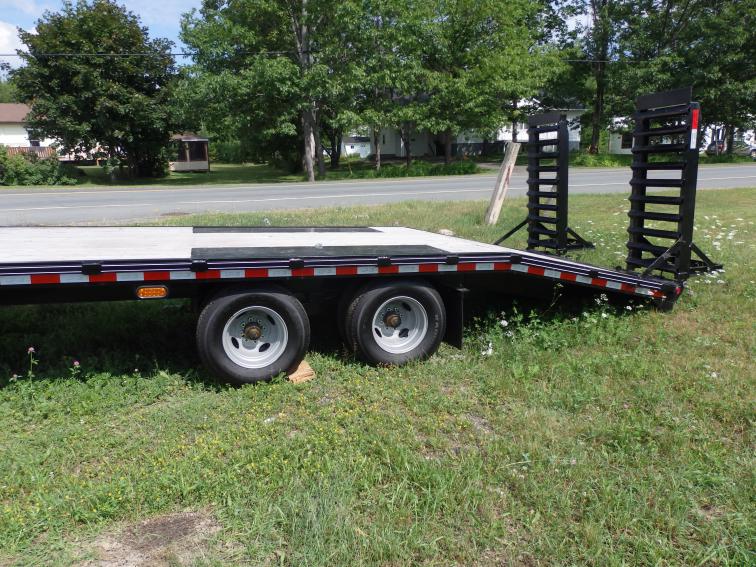

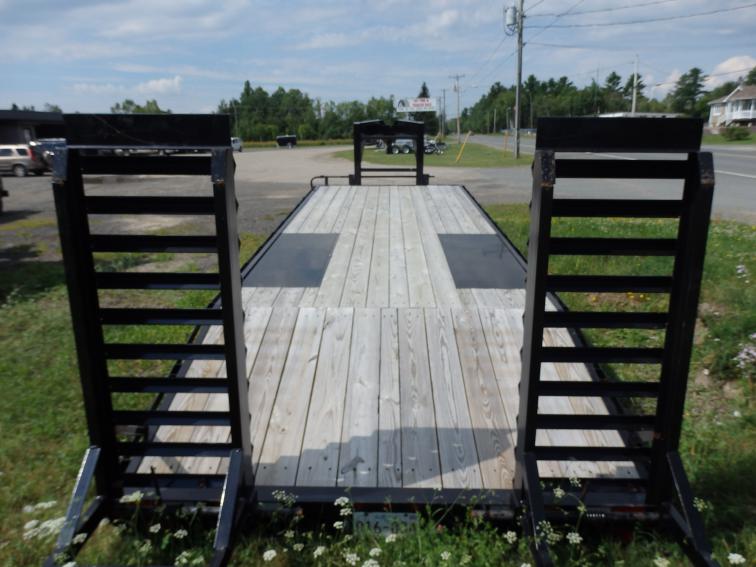

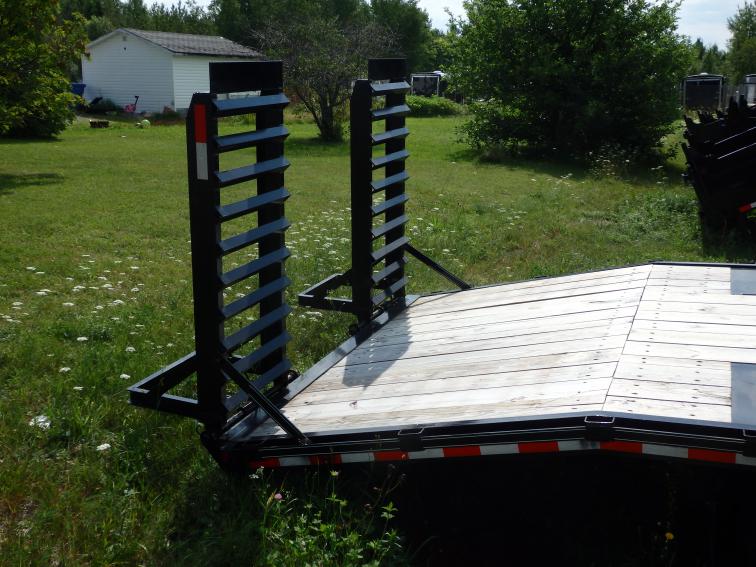

• 5 ft. swing-up ramps with support foot

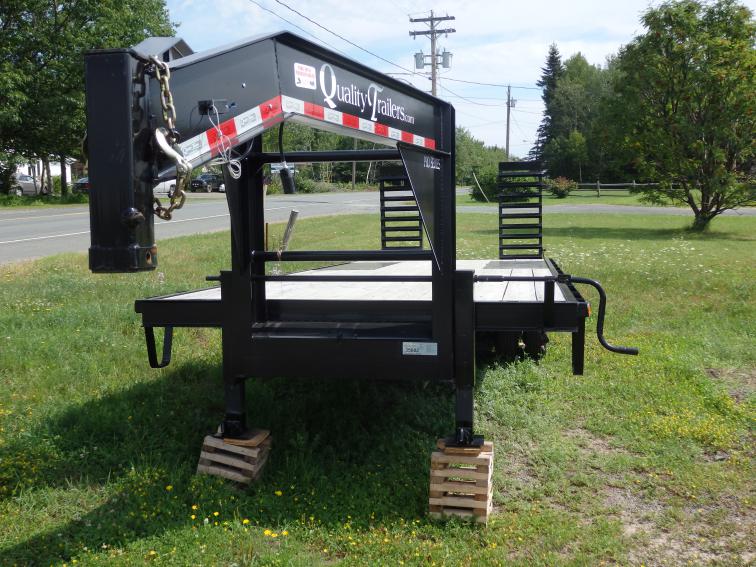

• 2 5/16″ adjustable gooseneck coupler
• 12000 lb. drop-foot jack

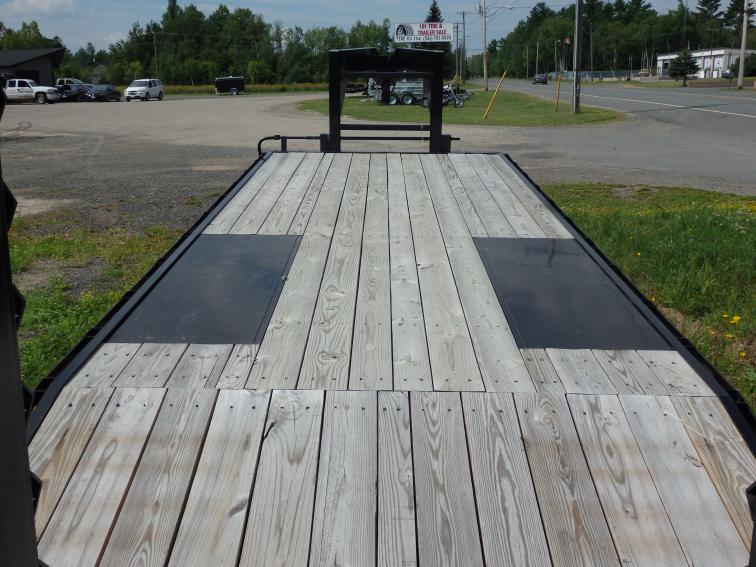

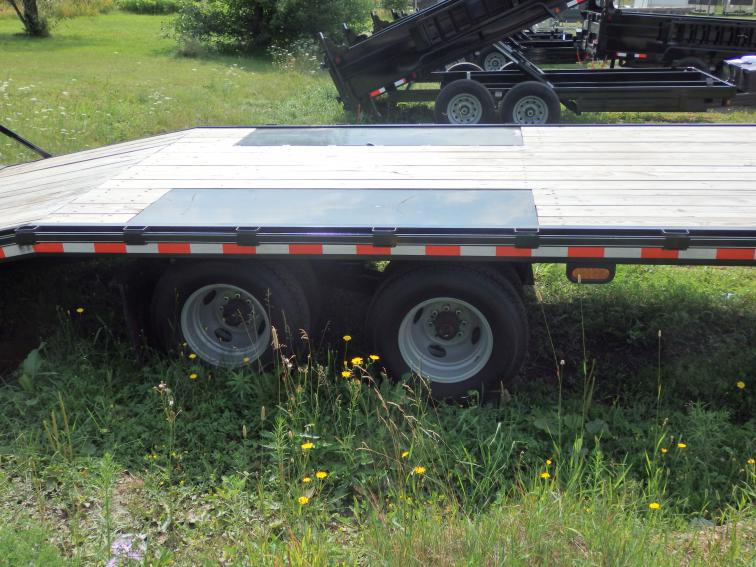

• Metal plate over wheels for lowest possible loaded deck height (30″)
• Stake pockets and rubrail
• Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S made sealed modular harness with 5 year warranty
• Primed, 2 coats of automotive grade enamel, pin stripe
